You must have Canon EOS 7D MK 2 Professional installed and Licensed on your PC for Upgrade to work.
This software upgrades Professional into Professional Advanced and Adds the Following:
Information from your Advanced Plugins are added to your FAX.
Print, email and pdf the Advanced Professional Camera FAX Report with your own custom header and footer. All the information from your software is imported (including your seven plugins) into the Camera FAX ... automatically! Add your Business address, contact information and even your business Logo.

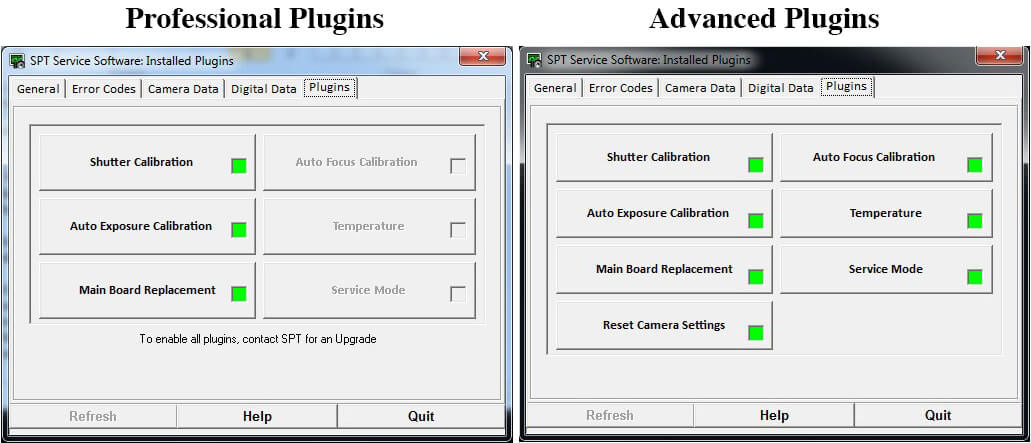

Upgrade adds the following Plugins:
- Reset Camera Settings. Includes Standard Defaults and Regional Defaults. Standard Defaults returns the camera to the original / ‘new out of the box’ settings. Regional Defaults automatically restores languages, video system and date/time display formats to world and regional setting.
- Auto Focus Calibration. Backup and Restore Af Shift Data, Calibrate a Test Lens, AF Calibrate to automatically adjust Camera Body Auto Focus. It also includes Enable Sensors and AF Shift to manually adjust Camera Body Auto Focus including both All Sensors and Individual Sensors. And AF MacroAdjust professionally adjusts a Lenses Auto Focus to the camera body.
- Temperature. Read the temperature sensors on the EF Unit, Shutter, Memory Card Unit and the AF Unit using a single convenient plugin to avoid time consuming troubleshooting.
- Service Mode. Power the camera without the back panel or covers, even without the motor drive board. After setting the camera it will remain in service mode until changed. The ability to test your camera without covers is an incredible time saver!
Preview the Software by ‘clicking’ on our slideshow.
Reset Camera Settings Plugin:
- Standard Defaults. Returning the camera to its default ‘just out of the box’ settings can be very useful when replacing the Main PCB or buying and selling the camera. It clears the camera of personal setting and information. One or all of the follow can be reset to default; User and Custom Functions, File System, Date and Time, Language (English), Artist Information and Copyright Information.
- Regional Defaults. This feature will allow you to purchase new Main Boards on the open market from Third Party Vendors. Often Open Source Main Boards limit language selection and video formats. Regional Defaults allows you set language and video by region; North America, Japan, China and Europe, Rest of the world.
Auto Focus Calibration Plugin: This plugin allows you to do Auto Focus calibration without expensive tools and jigs.
Here is what you need:
- Build a sturdy test bed. See our ‘Help’ files.
- A good quality 100mm / F2 lens.
- Auto Focus Targets which are part of the software package and made specifically for this model.
AF Plugin Features:
- Backup AF Calibration data.
- Calibrate Test Lens. You can create a number of test lenses - unlimited by number for focal length. We recommend a good 100mm F/2 but you can make other choices
- Sensor Output. Checks all the cameras AF Sensor Outputs.
- AF Calibrate adjusts the camera body’s Auto Focus Sensors using our automated system.
- Enable Sensors and AF Shift. Combining these two features allows you to manually adjust All AF Sensors or Individual AF Sensors.
- AF MicroAdjust professionally adjusts a Lenses Auto Focus to the camera body.
Temperature effects the Image Sensor Distance, the Shutter, the AE Unit, The Flash and the Main PCB. In addition, different parts of the camera heat and cool at different rates all of which as to be accounted for in the camera’s calculations. Cameras do this by using temperature sensors in key locations. When one or more of these sensors fail, the result can be a difficult to diagnose repair, without the aid of software!
The following are just some difficult to pin down symptoms:
- Soft focus on hot days. (CMOS Unit)
- Over/Under exposure, intermittently. (AE Unit or Shutter)
- Dark Images at high speeds, intermittently. (Shutter)
- Incorrect Flash operation (EF Unit)
This Plugin reads the temperature sensors on the EF Unit, CMOS Unit, AF Unit, Main Board, Bottom Board and the Back Cover using a single convenient plugin and avoid time consuming troubleshooting.
Who hasn’t been frustrated by the need to completely reassemble the camera before they can test it. Or trying to test it partially disassembled with parts of the camera hanging in precarious positions. How many hours have you wasted over this?
SPT software allows you to put the camera in Service Mode so you to safely test the camera without covers.
While in Service Mode, the camera ignores the On/Off and door switches. It will power up with the rear display panel completely removed. It will even power up with other major boards completely removed, even the lower board.
How it works:
1. You connect the camera to the software.
2. Set the Service Mode and Disable the Flash.
3. Quit the software - the camera remains in Service Mode.
4. Preform the repair and test the camera before complete reassembly.
5. Finish the Assembly.
6. Connect the Camera to the software and return to Normal Mode.
Outstanding Help Files!
Just click 'Help' in any function and your Help window automatically opens to that section .. perfect!
We have used many Help files in other softwares only to become frustrated trying to find the right section and then trying to understand the what it means. We give clear directions with help sections linked to their functions. You are also able to access all areas of the help files in any function.
Evolving Error Codes and Free Updates!
All are part of your software package! SPT software starts with all known internal error codes and their possible cause(s). But as the camera repair field links internal error codes to additional causes we add that information to software updates. Free updates also allows your software to adapt to changes in both hardware and firmware.
Lots of horsepower under the hood with our simple user interface.
